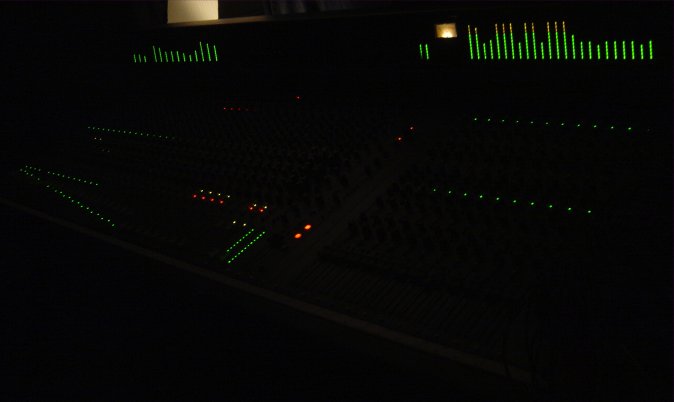

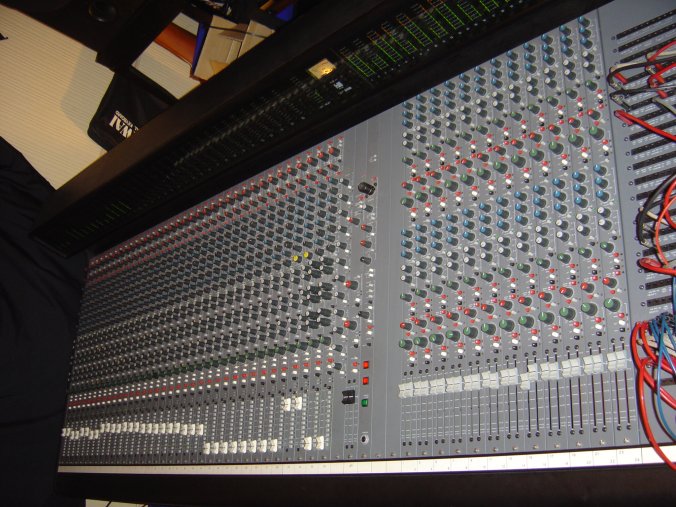

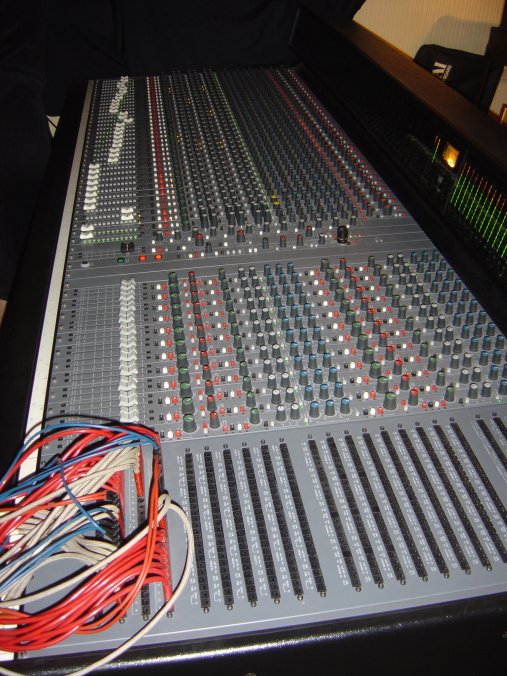

Hill Audio Concept 8400 Analogue Mixing Console with stand, PSU and EDAC looms
 |
 |
 |
|
| Custom
36:24:24:2 Split Console with 62 12
segment LED meters, 1 VU meter, built-in
Bantam patchbay with 96 tie lines,

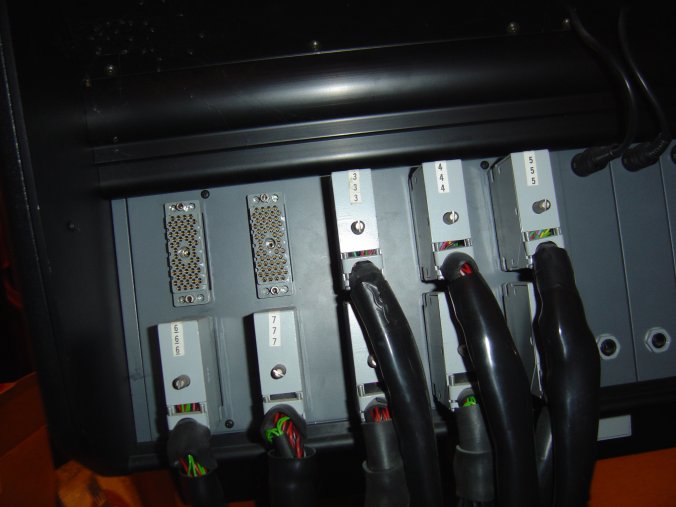

interfacing with the studio via 13 56-way
gold EDAC connectors with 10 made-up looms to
cater for 24trk multi-track recorder, F/X
Processors, synthesizers etc… |
| Purchased
in 1990 direct from the manufacturer, kept
in a smoke free environment in a personal
studio with very little use. This
desk has a lovely warm analogue sound with
very versatile parametric Eq, excellent
monitoring facilities and extremely flexible
patching and routing capability.
|
 |

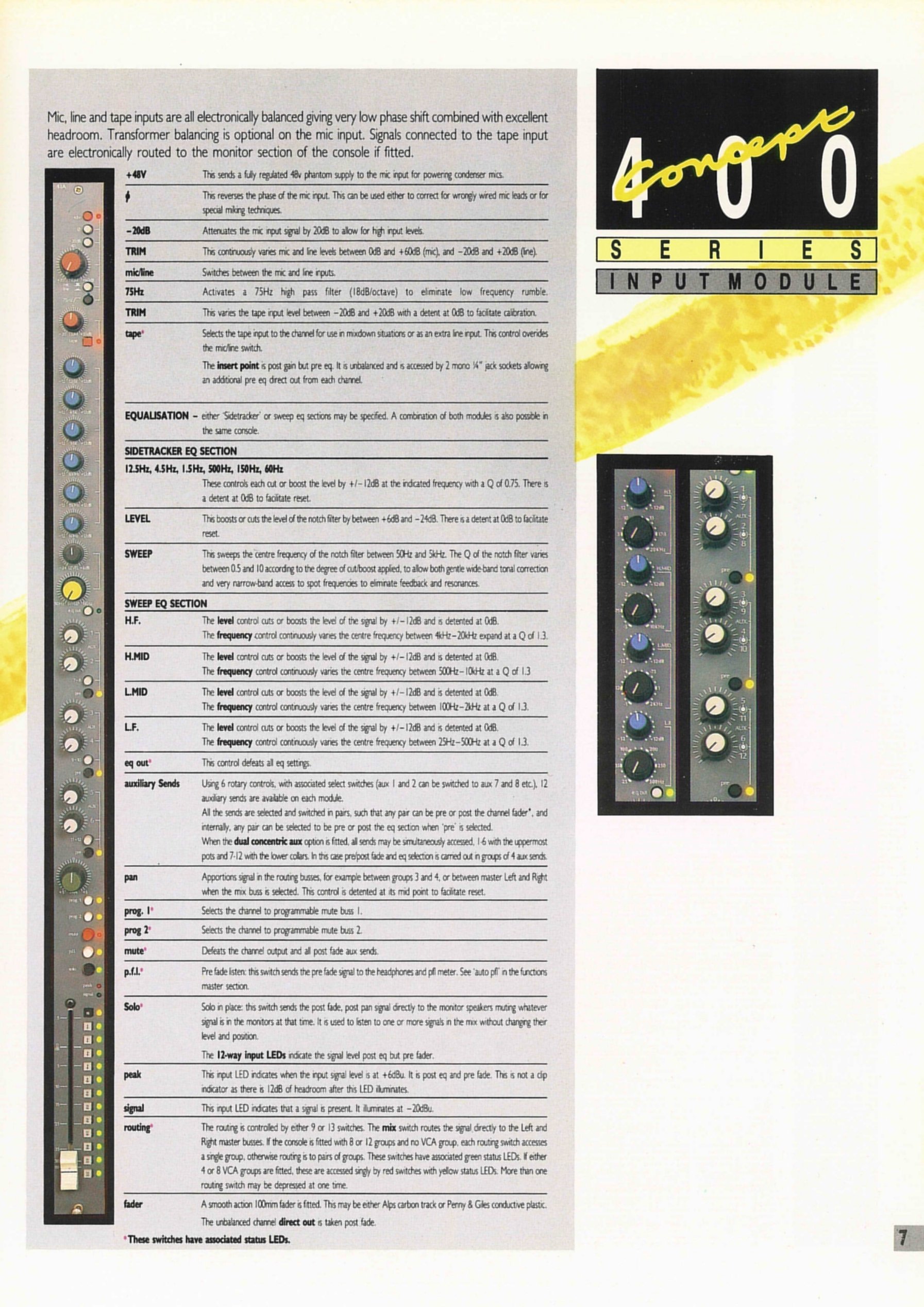

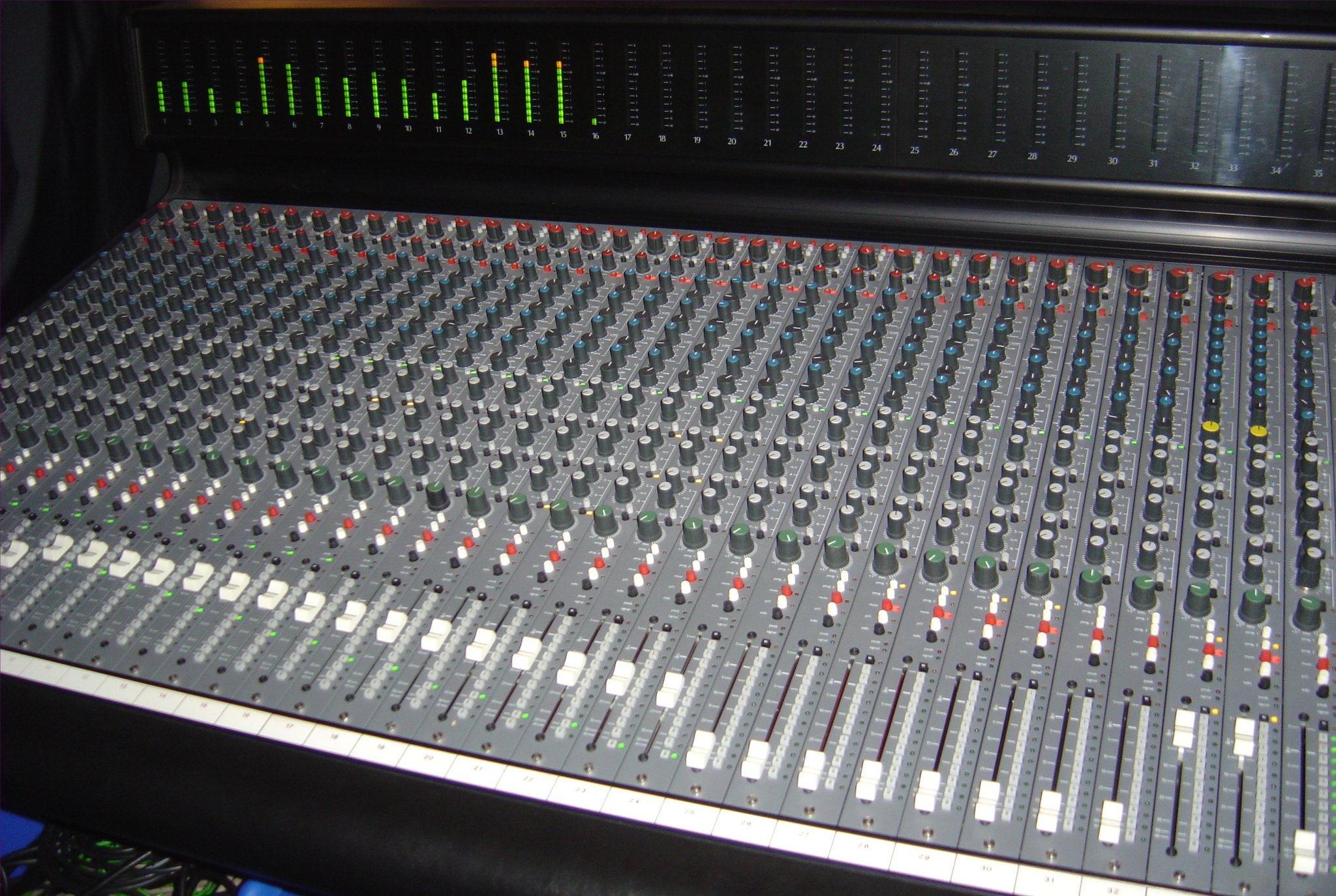

| Each
of the 36 input channels has mic, line and
tape balanced inputs, 48v phantom power and 12
auxiliary send busses 34 of which
can access 6 at any one time, the remaining
2 can access all 12 at one time. All 36
input channels have 24 bus routing to the
subgroups and the main stereo bus. 34
channels have parametric EQ the remaining 2
have fixed EQ. 100mm long throw Alps faders,
pfl, solo, mute and 2 programmable mute
buttons. |
 |
|
All
channels are modular, so removable for
servicing etc…. The PSU is rack mountable.
Manual, diagrams, brochures and contact
details of qualified (Ex. Hill) service
engineers provided.
The
stand was custom made for the desk, powder
treated, black, metal.
Please
note we will not arrange shipping, you must
arrange collection, requires 4 guys
to carry this baby and recommend a Van as
transport. Dimensions are 2230mm by 1000mm
There is no automation built into
the mixer but can be retrofitted or external

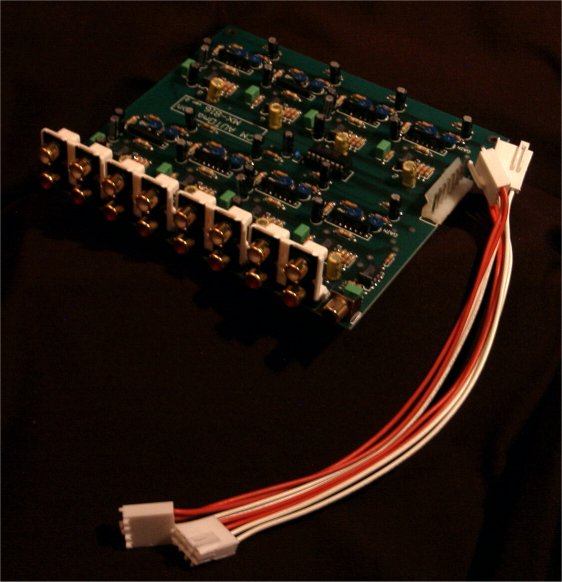

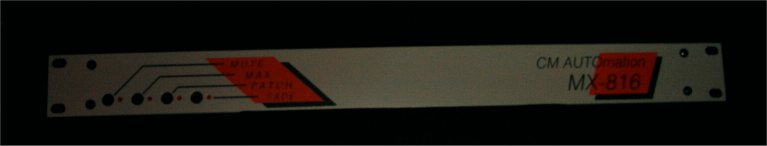

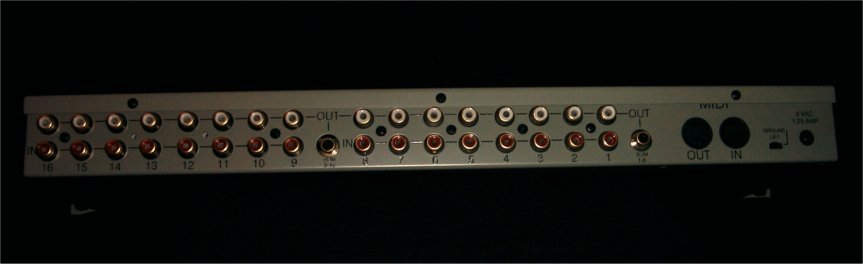

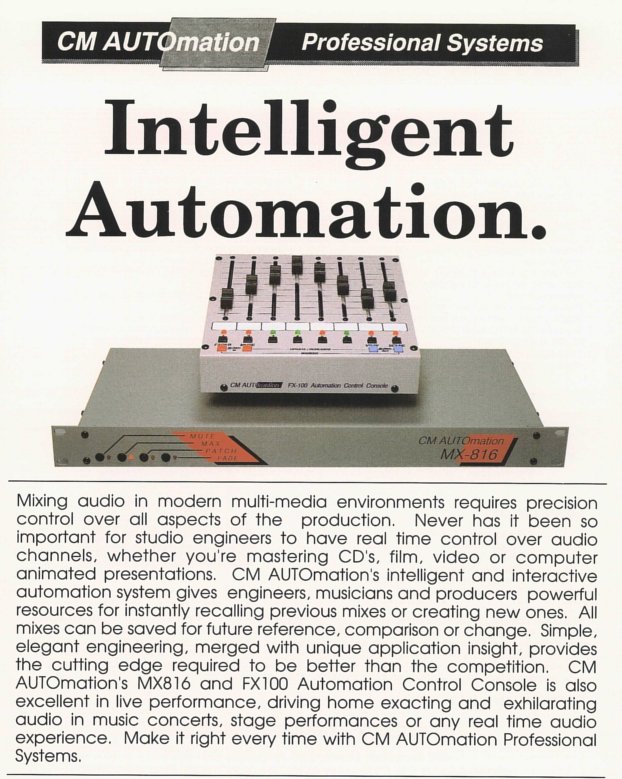

automation systems used. See below CM
automation system which is included in the
sale for part automation of console.
|
 |
 |
 |
 |
 |
 |
Click
on fader box for brochure
|
 |
 |
|
|
 |
|
 |
|
|
